How to use Floor plans?

Where does the stage go, how many round tables fit in the room, and who sits at table 7? Plan / Seating answers all three. You draw the floor plan of your venue to scale: tables, seat rows, the stage, the bar, the dance floor, walls and doors, on top of the venue's own drawing if you have one. The same plan is your seating plan: for an event with invitations, you seat the guests yourself; for an event with tickets, your guests pick their own seat while they order. It is part of the event software of eventplanner.net, and every event has one plan.

You do not need seats to use it. A floor plan without a single chair is just as useful: it tells your venue, your caterer and your crew where everything goes, and the overview counts what you have to order.

Want to see what the floor plan designer and the seating plan can do before you start? Have a look at the overview pages first.

Where to find it: log in, choose event software in the main menu and open Floor plan & seating in the menu of your event.


1. Before you start

Plan / Seating is a .PRO tool

Plan / Seating is only available to .PRO members. Without a membership you see Unlock .PRO features instead of the designer, with a button to upgrade.

The membership is checked per person, not per event. Every team member who opens Plan / Seating needs their own .PRO membership, also when you are a member and give them access to the tool, and also when they may only look at the plan. We recommend .PRO for the people who draw the plan and seat the guests. Colleagues who only need the guest list or the tasks can keep working in those tools without a membership.

An event, in metres or in feet

The plan belongs to an event, so create one first if you have none yet. Read how to set up an event for the details.

Every size on the plan is shown in the unit of your event. The form of your event has a field Measurement unit with two options: Metric (metres) and Imperial (feet and inches). We fill it in from your country, and you can change it at any time, also while your plan exists and your event sells tickets: the plan stays exactly the same, only the labels and the input fields change. A table of 1.8 m then reads as 5 ft 11 in.

Three ways to use the plan

Decide what the plan is for before you draw, because it changes what you need:

  • A floor plan only. You want a plan to scale for the venue, the caterer and the crew, and nobody is assigned to a seat. Draw the room and skip sections 4 to 6.
  • You seat the guests yourself. Your event works with personal invitations, an RSVP event in Tickets. You drag every guest onto a chair. Read section 5.
  • Your guests pick their own seat. Your event sells free or paid tickets, and buyers choose their seats on the plan while they order, like for a concert. Read section 6.

The type of your event is set in Tickets. Read how to use Tickets to choose it. A plan you drew stays when you change the type later.


2. Draw the floor plan

Open Plan / Seating for your event. The page is called Seating, and the counter under its title keeps count of what is on the plan. The buttons float over the drawing: at the top left Plan settings, Zones (not on an RSVP event), Venue plan, the PDF, Print and View in 3D, with Undo and Redo next to them; on the left everything you can add to the plan; at the bottom the zoom. On the right, Plan settings has three tabs: Plan dimensions, Overview and Help. Help lists what you can do in the designer and the keyboard shortcuts. When you select something, its properties take the place of Plan settings.

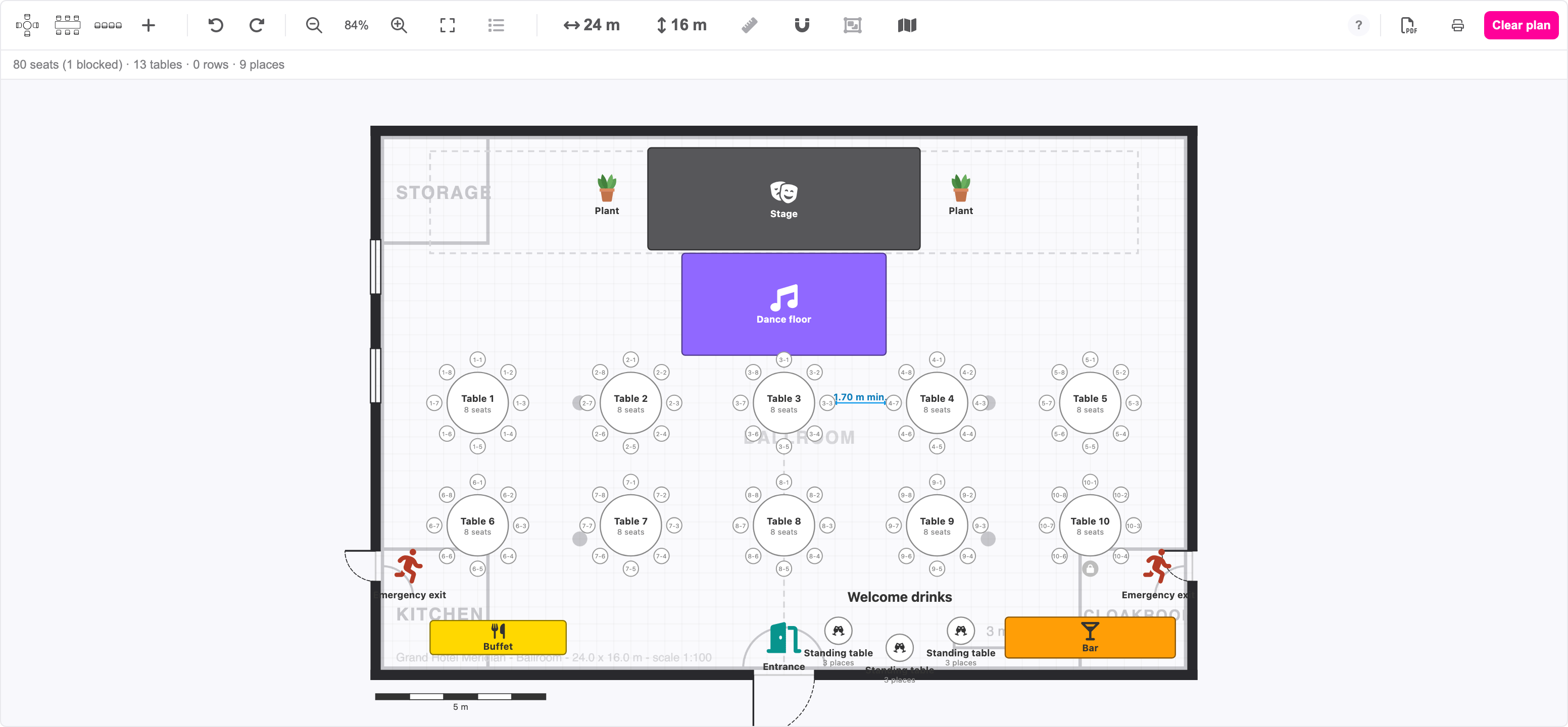

The floor plan designer with a plan for a gala dinner

The room

A new plan starts as an empty room of 25 by 15 metres. Open the tab Plan dimensions in Plan settings and set Room width (m) and Room depth (m) under Room size, from 1 to 500 metres. The light grid behind the room is half a metre (one foot on an imperial plan). Everything you place snaps to that grid, so tables line up on their own. Click Snap to the grid (the magnet) to switch snapping off when something has to sit exactly where you want it.

Scroll to zoom, drag the empty canvas to pan, and use Zoom in, Zoom out and Fit at the bottom. Fit shows the whole room again. Full screen gives the plan the whole browser window, and Esc brings the page back.

Tables and seat rows

The first three buttons on the left add the elements that carry seats:

  • Add round table: a round table with chairs around it.
  • Add rectangular table: a long table with chairs on the sides you choose.
  • Add seat row: a row of chairs, for a theatre or a ceremony.

A new element lands in the middle of your view. Drag it to its place, use the corner handles to resize it, and the top handle to rotate it. Click it, and the panel on the right shows its properties:

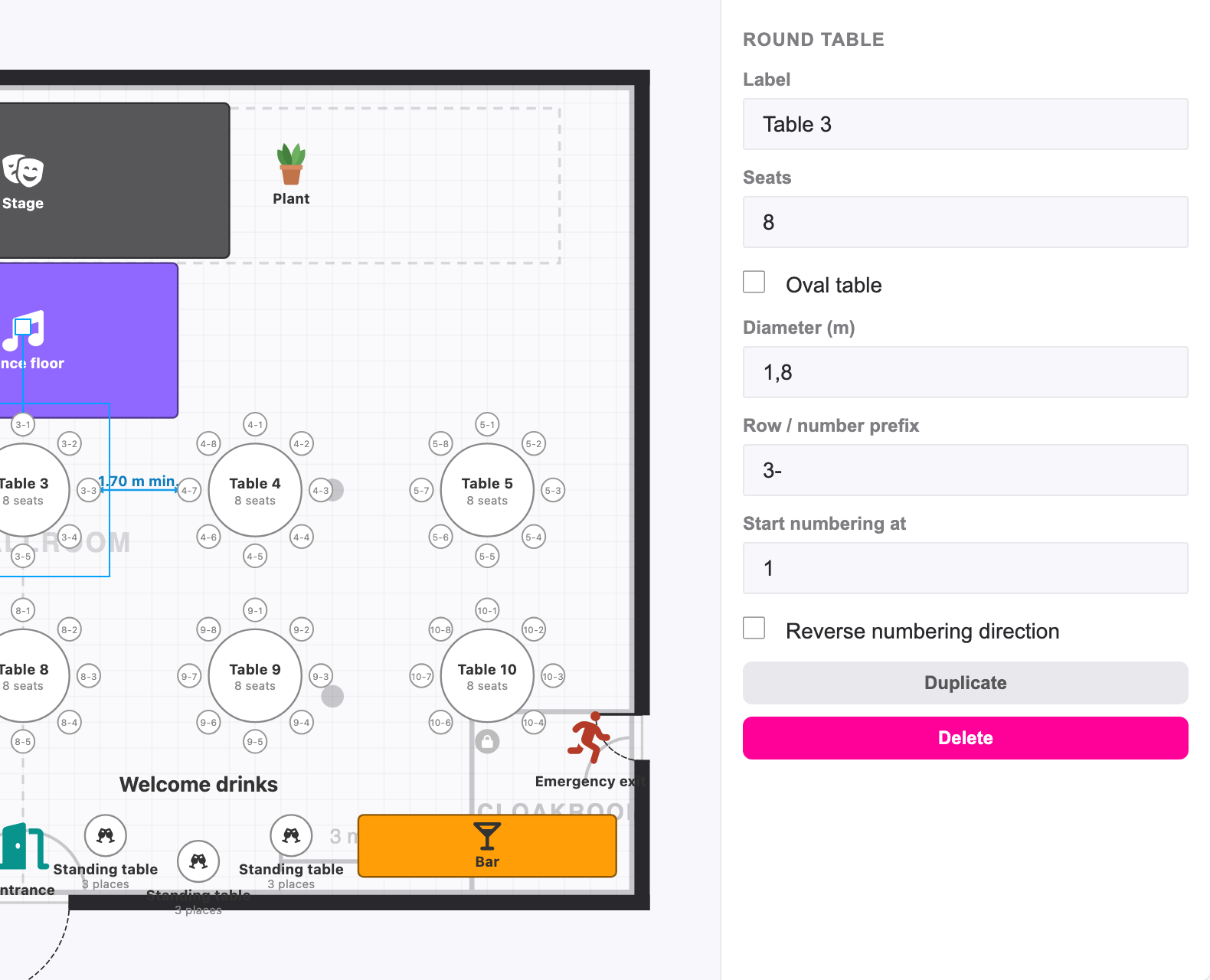

The properties of a round table

Label The name on the plan, such as "Table 7" or "Head table". Every table and row gets a letter and a name of its own when you add it (Table A, Table B, ...). Change it as you like.
Seats The number of chairs around a round table or in a row, up to 30.
Oval table Tick it to stretch a round table into an oval. You then set a Width (m) and a Depth (m) instead of one Diameter (m).
Distribute seats automatically On a rectangular table: type the Seats (total), up to 40, and tick the sides that get chairs: Top side, Bottom side, Left side, Right side. The chairs are spread over those sides. Untick it to type Seats top, Seats bottom, Seats left and Seats right yourself, up to 20 per side. A head table has chairs on one side only.
Seat spacing (m, centre to centre) On a seat row: the distance between two chairs, from 0.40 to 1.00 m.
Curve On a seat row: bends the row round the stage in front of it, from Straight (0%) to Half circle (100%). Read Curved rows, like a theatre below.
Zone On an event with zones: the zone the seats of this table or row belong to. Read section 6.

The numbering fields below them are explained in section 4. The counter under the title of the page keeps count while you draw: seats, tables, rows and places.

Everything else: the element catalog

Click Add another element (the plus) to open the catalog. It has six groups:

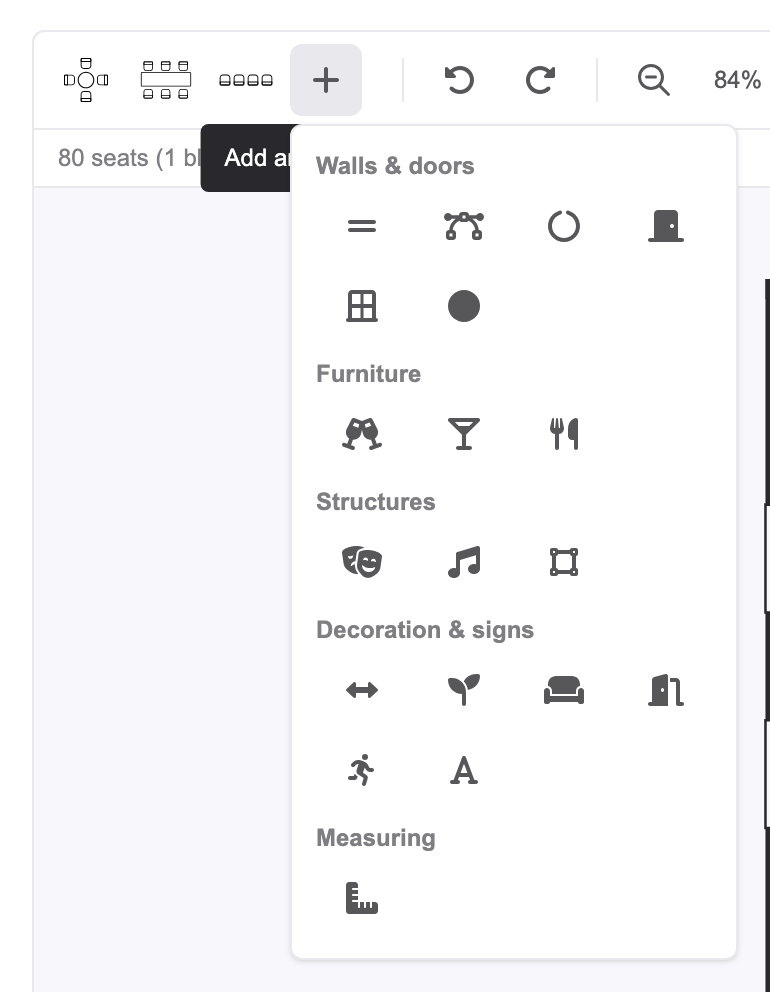

The element catalog

Furniture Standing table, Bar, Buffet and Other furniture for anything else you rent, such as a sofa or a coffee table. A standing table has Places instead of seats: how many people stand at it. Places count in the overview, but nobody can be assigned to them and they are never sold.
Structures Stage, Dance floor, Tent, Area. An area is a coloured rectangle with a name, to mark a part of the room: the lounge, the catering area, the cloakroom.
Gear & equipment Audio equipment for speakers or a piano, and Stage & event lighting for light stands.
Decoration & signs Free passage for a corridor that has to stay clear, Plant, Entrance, Emergency exit and Text label for a note on the plan.
Walls & doors Wall, Curved wall, Corner, Door, Window and Pillar, to draw the contour of the room.
Measuring Distance marker: a measurement that stays on the plan.

Every element has a real size: a stage of 6 by 4 metres, a bar of 4.5 by 4.5 metres, a plant of half a metre. Drop it in, then change Width (m), Depth (m) or Diameter (m) in the panel to the size you ordered. Most elements take a Colour from a fixed set of print-friendly colours, and a Show the icon on the plan switch for the small picture in them. A Text label has a Text size (m) that scales with the plan.

Walls, doors and windows

Walls make the plan look like the real room and tell everyone where the exits are. A Wall is drawn by dragging its two ends, or by typing its Length (m) in the panel. Set its Wall thickness (m). A Curved wall also has a Curve (m, negative bends the other way). A Corner joins two walls at an angle: type the Length of each side (m), the Corner angle (degrees) and the Roundness (m, 0 is a sharp corner). Walls that meet snap to each other.

Drop a Door or a Window onto a wall and it attaches to it: the wall opens up where the door is, and the door moves along when you move the wall. Set the Door width (m) or Window width (m). A door has two more options: Open to the other side and Hinge on the other end (for double doors). Two doors side by side with the hinge on the outer ends make a double door. A Pillar is Round or Square, with its own size.

Tip: draw the walls, doors and emergency exits before the tables. A plan with the contour of the room is what your venue and your safety officer want to see, and it keeps you from placing a table in front of an exit.

Move, copy and delete

  • Drag an element to move it. While you drag, guide lines show the distance to the elements around it.
  • Click Select several items by dragging (the dotted square) at the bottom and drag a rectangle across the plan to select everything in it. Or hold Shift and drag. Shift-click adds or removes one element. Drag any element of the selection to move them all, keeping their spacing. The panel shows the Selection with a Duplicate and a Delete button for the whole set.
  • Duplicate in the panel copies the selected element next to the original, with the next free letter for a table or a row. Copy a table once you have one you like, instead of setting the same options again.
  • Delete in the panel, or the Del key, removes the selection.
  • Where elements overlap, the one added last lies on top, and a click selects it. The small bar that floats over your selection changes that: Bring to front and Send to back move it all the way, Bring forward and Send backward one step. The same bar holds the colour of the element, its zone, Arrange, Repeat, Duplicate and Delete, so the most common changes are one click away from the element itself. A new tent, stage, dance floor or area is placed under the furniture already on the plan, and a copy lands right above its original. If a tent or a stage still covers your tables, select it and click Send to back.
  • Undo (Ctrl+Z) and Redo (Ctrl+Y) go back and forth through your changes. Ctrl+A selects the whole plan, Esc drops the selection.
  • Every change is saved on its own. Saved ✓ next to the counter confirms it. There is no save button.
  • Clear plan removes everything from the plan at once, including the guests you seated. It asks you to confirm.

Rows and tables at the same distance

A theatre of twenty rows or a classroom of twelve tables does not have to be placed one by one. Draw one row or one table the way you want it, and let the plan place the others, all at the same distance.

Repeat copies the selected element in rows and columns. Select a seat row, a round or rectangular table or a buffet, click Repeat in the bar over it and fill in:

  • Rows: how many rows there are in total, the selected one included. The new rows go behind it, away from the side its chairs face.
  • Columns: how many there are next to each other. The new ones go to its right.
  • Space between rows (m) and Space between columns (m): the free space between them.

While you type, pink outlines on the plan show where the copies will go, and the window says how many elements and seats it adds. Click Apply to place them. The new tables and rows take the next free letters, from front to back, and stay selected with the original, so you can move the whole block at once. One Undo takes them all away again.

How the space is measured:

  • Seat rows: from the back of a chair to the front of the chair behind it, the free space a guest walks through. That depends on how deep the chairs are, so the window names the chair it counts with and its depth: the chair the row has in 3D, the theatre chair unless you chose another one (read Furniture in 3D below).
  • Tables and buffets: between the table tops. The chairs are not counted, so leave room for them: one metre behind a classroom table is enough for a chair and a passage.

For one round table, tick Staggered: the same space to every neighbouring table. Every other column then moves half a step back and the columns move closer together, so each table stands the same distance from all six tables around it, the way banquet rounds are often set. One field, Space between tables (m), then replaces the two spaces.

When you repeat a seat row next to itself, with a passage in between, the copy is the same row of the room on the other side of the aisle. Seat numbers across the aisle decides how it is numbered:

  • Same letter, keep counting: row A has seats A1 to A10 on the left and A11 to A20 on the right. This is the default.
  • Same letter, odd left and even right: the theatre way, A1, A3, A5 on the left and A2, A4, A6 on the right.
  • A new letter for each block: the right side becomes row B.

When the copies would get a seat number the plan already has, such as a seat you numbered yourself, the window names it and Apply stays off until you choose another numbering.

Repeat is for seat rows, tables and buffets. To copy anything else, use Duplicate.

Repeating a seat row: the outlines of the new rows behind it

Arrange lines up elements that are already on the plan. Select them, click Arrange in the bar and choose:

  • Align: line up their left edges, their right edges, their top or bottom edges, or their centres.
  • Same space between them: the first and the last stay where they are, and the ones in between move so the space between all of them is the same. This needs three elements or more.
  • Centre between the walls: moves the selection as one block, so it is as far from the wall on its left as from the wall on its right, or from the walls above and below it. Where no wall stands on a side, the edge of the room counts.
  • Space between them (m): type a distance and click Side to side or Top to bottom. The first element stays, and every next one moves to exactly that distance from the one before. Use it to put the rows of a theatre 45 cm apart after you placed them.

Arrange measures the way Repeat does: seat rows by their chairs, tables by their tops. Walls, doors and distance markers in your selection stay where they are: they are what the rest is lined up against.

Tip: the guide lines you see while you drag a seat row measure the same way, from the back of one chair to the front of the next. Drag a row until the line shows the distance you want.

Curved rows, like a theatre

In a theatre the rows curve round the stage, so every guest looks straight at it and sits about as far from it as their neighbours. Select a seat row and drag Curve in the panel: at 0% the row is straight, at 100% it goes round a half circle. The plan follows while you drag. The middle chair stays where it is and the ends come forward, towards the side the chairs face, and every chair turns to the stage. The chairs keep their Seat spacing and their numbers.

A whole block of rows bends in one go. Select the rows, and only rows, and the panel shows Curve the rows. All rows bend round the same centre, each one as far behind the front row as before, so the space between two rows stays the same from one end to the other. At 100% the front of the block goes round a half circle. Rows next to each other, with an aisle in between, follow the curve too: they turn towards the stage, and the aisle runs out from it, getting a little wider towards the back. Back at 0%, the block stands straight again.

Repeat on a curved row does the same: the new rows go round the same centre, each a little wider than the one in front of it, with the Space between rows (m) you typed, from the back of one row's chairs to the front of the next. New columns go further round the curve.

Bending moves the chairs, not the seats: the seat numbers, the guests you seated and the tickets you sold stay on the same seats. One Undo takes back a whole drag of the slider.

Tip: draw one straight row, Repeat it into all the rows you need, and bend the whole block with Curve the rows while it is still selected.

Measure

Click Measure a distance (the ruler), then click two points on the plan: the distance between them appears at the top. Click again to measure something else, or press Esc to stop. Nothing is added to the plan. For a distance that has to stay on the plan, such as the width of the passage between two rows, add a Distance marker from the catalogue: drag its two ends to the points, or type the Distance in the panel, and give it a note such as "min." in the Label field. Hold Shift while you drag an end to keep the marker exactly horizontal or vertical.

The overview: what to order

Open the tab Overview in Plan settings. It lists every element of the plan with its size and colour and how many of them you have: 12 round tables of 1.8 m, 3 standing tables, 1 bar, 1 stage. The total at the bottom counts the seats and the places. This is the list you send to the rental company, and it must never disagree with the drawing, because it is based on the drawing. Walls, text labels and distance markers are not in it: they are the room, not what you order.

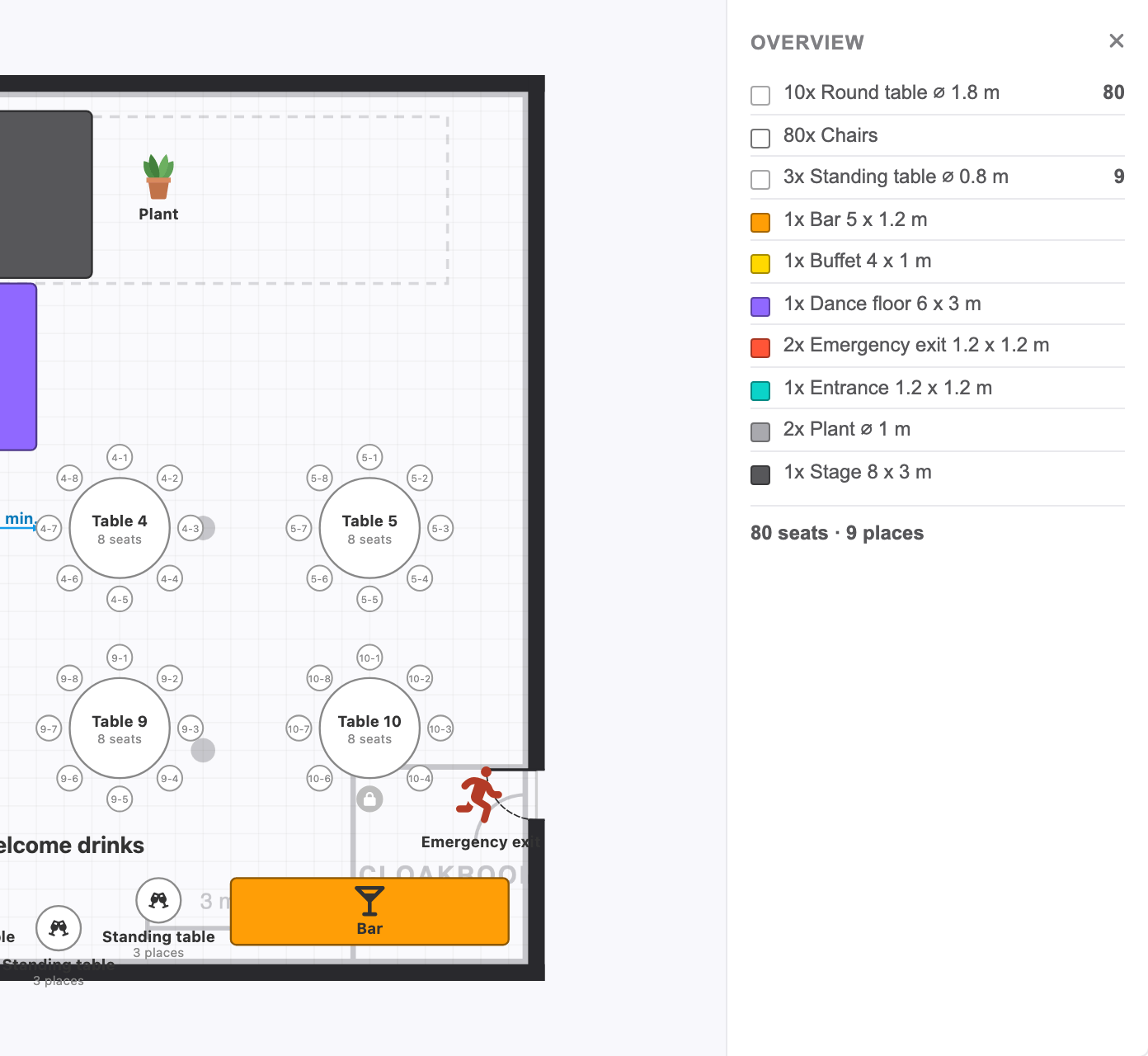

The overview with the counts of every element

See your plan in 3D

Click View in 3D (the cube) at the top left, and the plan becomes the room: the floor, the walls with their doors and windows, the tables with their chairs, the stage, the bar and the rest of your furniture, all at their real size. The same button is in Seating - assign guests and Seating - who sits where too, next to Print, so you can open the room in 3D while you seat your guests. Everyone who can open the plan can look at it in 3D, also with Read access. It works in every recent browser on a computer or a tablet. The eventplanner.net app does not show it.

The 3D view of the gala dinner: the ballroom with its tables, chairs, stage and bar

The 3D view has its own buttons:

  • Look around: drag to turn the room, scroll to zoom, and drag with the right mouse button to move.
  • Walk through: walk through the room at eye height, as your guests will. The up and down arrows walk, the left and right arrows turn, A and D step sideways. Click the room to look around with the mouse, and press Esc to let go of it. Walking needs a mouse and a keyboard.
  • High res: draws the floor and the furniture in more detail. Turn it off again if the view gets slow.
  • Full screen gives the 3D view the whole screen.
  • Save as image downloads a picture of what you see, as a PNG, ready for a proposal or a briefing.
  • Redraw from the plan builds the room again with the changes you made to the plan since you opened the 3D view.
  • Close the 3D view takes you back to the plan.

Tip: walk the route of your guests before the event: from the entrance to their table, past the bar to the dance floor. A passage that looks wide enough on paper can turn out to be tight once the chairs are pushed back.

Walking through the ballroom at eye height

The room in 3D

How the room looks in 3D is set in the tab Plan dimensions of Plan settings, under Room in 3D. It only changes the 3D view: the plan, the PDF and the print stay as they are.

  • Wall height (m): 3 metres to start with.
  • Floor: a Plain colour, or a material: Concrete, Oak floor (the start), Parquet, Herringbone parquet, Carpet, Tiles, Marble, Terrazzo or Dance floor, and for an event outdoors Grass, Gravel, Terrace slabs, Decking or Sand. Most materials come in a few colours of their own, and Custom colour takes any colour. Polished floor gives the floor a lacquered, reflective finish. Tiles, marble, terrazzo and the dance floor start polished, and the outdoor floors never are. With a map under your plan, the list also has Map: the 3D view then lays the map on the floor, where it lies under your plan and not transparent. A map takes no colour and is never polished. Where the map does not reach, and once the plan has no map any more, the floor is oak.
  • Walls: a Plain colour, Plaster (the start), Concrete, Brick, Red brick, White brick, Natural stone, Marble, Onyx, Fabric or Drape.

A single wall, corner or pillar can look different from the rest of the room: select it and choose its Finish in 3D, which is Same as the room until you change it. A material comes in the same colours as on the room's walls, and Own colour takes any colour. Walls, doors, windows, furniture and decoration also have a Height in 3D (m), and a window a Bottom above the floor (m).

An Area or a Dance floor can have a floor of its own in 3D: select it and choose a material under Finish in 3D, from the same list as the room's Floor. A material comes in the same colours as on the room's floor, and Polished floor works the same way. With Plain colour, the 3D view shows it in the colour it has on the plan. The plan itself always keeps that colour.

A part of the room that walls close off all round, such as a backstage or a cloakroom, can have a floor of its own in 3D as well. There is nothing to add: as soon as the walls close it off, click on its floor in the plan. A dashed line shows its outline when you move the pointer over it. Choose its Floor from the same list as the room's Floor, with the same colours and Polished floor. It starts at Same as the room. A door does not open it up, but a gap between two walls does. The floor stays with the walls when you move them or redraw one of them. Walls around the whole plan close off the room itself: its floor is the Floor under Room in 3D.

Furniture in 3D

Without a choice of yours, the 3D view draws simple shapes: a white table, a grey box for the bar. Give the room real furniture in two ways:

  • For the whole plan. Under Default furniture in 3D, in the same tab Plan dimensions, choose what stands on the plan unless an element picks its own: the Chairs at tables, the Seats in rows, and the Round tables, Rectangular tables and Standing tables. A new plan starts with conference chairs at the tables and theatre chairs in the rows.
  • For one element. Select it and click Choose next to Furniture in 3D. Tables and seat rows also have Chairs in 3D for their chairs.

Choose opens Choose furniture, with up to three tabs:

  • Our library: realistic chairs, armchairs, bar stools, a sofa, plants, tents, speakers, lights and more, chosen for events. Every element lists what fits it: a plant lists plants, a tent tents, Audio equipment the speakers and the piano. Many models come in colours: click a colour on the card, then Set furniture item. A double click on a card does both at once. Can't find the furniture you need? Click Ask us to add it below the models and tell us in the chat what you need.
  • Uploads: your own 3D models, for an event of a business account. Drop a .glb file of up to 64 MB and we optimise it for the 3D view. Your models stay private to your account: your colleagues can use them, nobody else sees them.
  • From supplier: rental companies and manufacturers publish their furniture on eventplanner.net. Search for one by name or city and pick it: their models join the choices, and your overview becomes their order list.

Choose furniture: the chairs of our library, with their colours

A chosen model has a real size, so the element takes it over: the size fields show the size of the model and cannot be changed. Back to the standard shape removes the model and lets you size the element yourself again. Other furniture, Tent, Audio equipment and Stage & event lighting take the name of the model you choose, "Grand piano" instead of "Audio equipment", unless you typed a name of your own. On the plan, a larger element with a model of its own shows a small cube in its corner.

A Standing table can have bar stools in 3D: choose one under Chairs in 3D, which only lists high chairs, and the 3D view puts a stool at every place. Without a choice, its places stay standing room. The stools are only in the 3D view: places are still not seats, so nobody is assigned to them and they are not sold.

Good to know: the models of our library are made by 3D artists who share them under a licence that asks us to name them. The link 3D model credits in the 3D view opens the page that names every maker. A picture you save with Save as image carries a line at the bottom saying it was made with the eventplanner.net event software.


3. Start from a drawing you already have

Nobody likes to draw a room from scratch. Click Venue plan (the picture with a plus) at the top left. The window offers four shortcuts.

Trace the plan of your venue

Most venues have a drawing of their rooms: a PDF or an image, often to scale. Click Upload venue plan and pick the file: PNG, JPG or PDF, up to 15 MB. A PDF is converted to an image in your browser, first page only. The drawing appears under your plan, half transparent, and you draw on top of it.

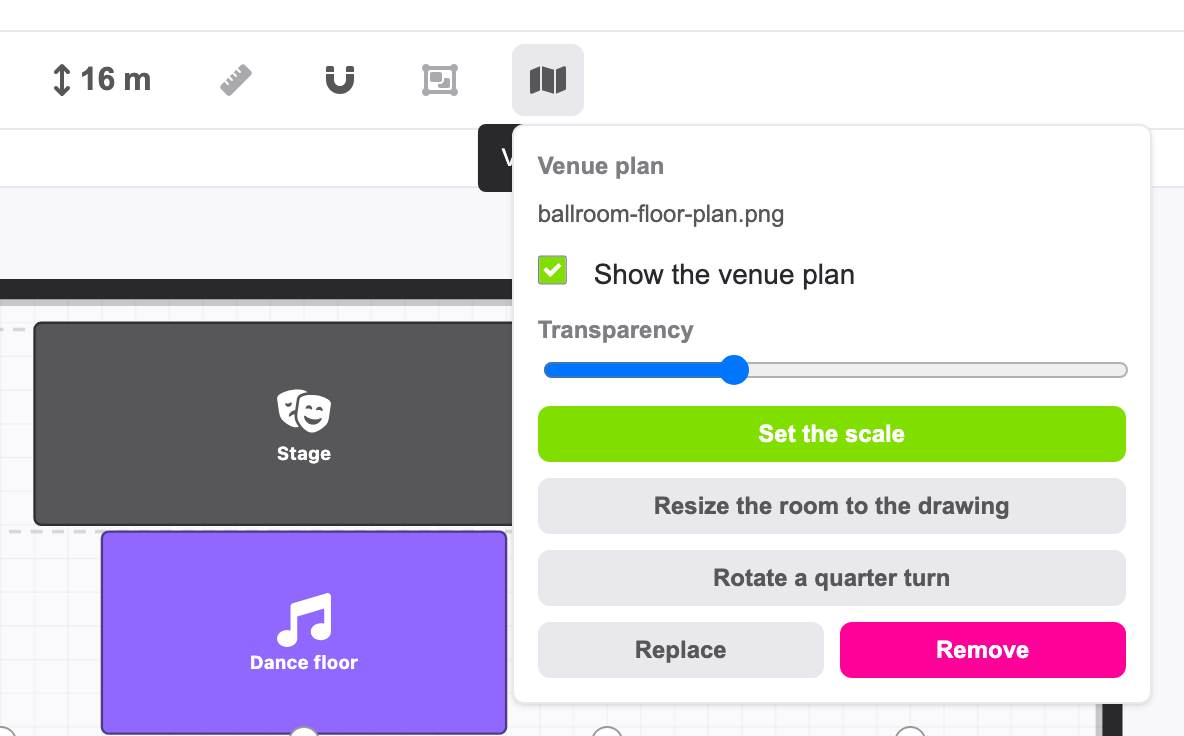

The Venue plan window with an uploaded drawing

A drawing has no scale of its own, so tell the plan how big it is. Click Set the scale, then click two points on the drawing that you know the real distance between, such as the two ends of a wall or the scale bar printed on the plan. Type the distance and click Apply. Until you do, the window shows Not calibrated yet - set the scale so the measurements on your plan are correct. Then click Resize the room to the drawing so the room is as big as the venue.

In the same window, you set the Transparency of the drawing, hide it with Show the venue plan, rotate it a quarter turn, replace it with another file or remove it. Removing the drawing leaves your tables and elements where they are.

Good to know: the drawing is only visible to people with access to your plan, and it is included when you export or print the plan. Switch Show the venue plan off before you export if your caterer only needs your own drawing.

Start from a map of the site

No drawing at all? For a festival field, a garden party or a market on a square, start from a map. Under Upload venue plan, click Add a map. A window opens with a map. Type an address or the name of a place in Search for an address or a place and pick it in the list. When the Location of your event in Tickets is a physical venue, the map opens there straight away.

Move the map and zoom in or out until it shows the area you want to plan: what you see in the window is what goes under your plan. Choose Satellite for the aerial photo or Street map for the streets and buildings. The line under the map tells you how much ground that is, for example The map shows an area of about 386 m by 168 m. Then click Add map.

The Add a map window, with the satellite map of a festival field

The map goes under your plan, half transparent, and your room takes its size: the area you picked is the area you plan on. A room can be up to 500 m on each side, so a wider map reaches past it on both sides. Tables and elements already on your plan stay where they are, so check them after a smaller room. The map is already to scale: the plan knows how big the area is, so you do not have to set the scale. In the Venue plan window, the map is called Map - satellite or Map - street map, and Change the map opens the map window again where you left it. Transparency, Show the venue plan, rotating, the scale and removing work as for a drawing. Already uploaded a drawing? Use a map instead puts a map in its place. In 3D, the map can be the ground of the room too: choose Map as the Floor under Room in 3D.

Market tents placed on the satellite map of a festival field

The same market in 3D, with the map as the floor

A map can be at most 1,000 m wide. When you zoom out further, Add map stays grey and the window says This area is too large for a plan. Zoom in until it is at most 1000 m wide.

Good to know: like a drawing, the map is included when you export or print the plan. Your ticket buyers do not see it on the seat picker. The map is loaded from our map provider, Mapbox, each time you open the plan: we keep where it is, not the picture itself.

Copy the plan of an earlier event

Did you draw this room last year? The section Copy a plan from an earlier event lists your earlier events with a plan. Pick an event and click Copy this plan. Everything comes along: the room, every element, the colours, the numbering, the blocked seats and the venue drawing or the map with its scale. Guests and seats they had do not: the plan is yours to fill again.

Two rules. The section is only there while your plan is still empty: as soon as you place one element, you can no longer copy a plan onto it. And it only lists events you can manage, so a colleague's event plan does not appear unless they gave you that access. If you already uploaded a venue drawing or added a map for this event, copying a plan replaces it, and you are asked to confirm.

Tip: starting your new event as a copy of an earlier one, in the event wizard, copies the plan too. You do not have to import it afterwards.

Import the floor plan of your venue

Venues with a business page on eventplanner.net can publish the floor plans of their rooms: the real room with its walls, doors and fixed elements, and ready-made setups such as a banquet or theatre layout. Under Import a venue floor plan, type the Venue name or city, Pick your venue in the list, then Pick the room and the floor plan or setup and click Import this plan. You start from the real room, drawn by the people who know it. Like the copy above, this only works while your plan is still empty.

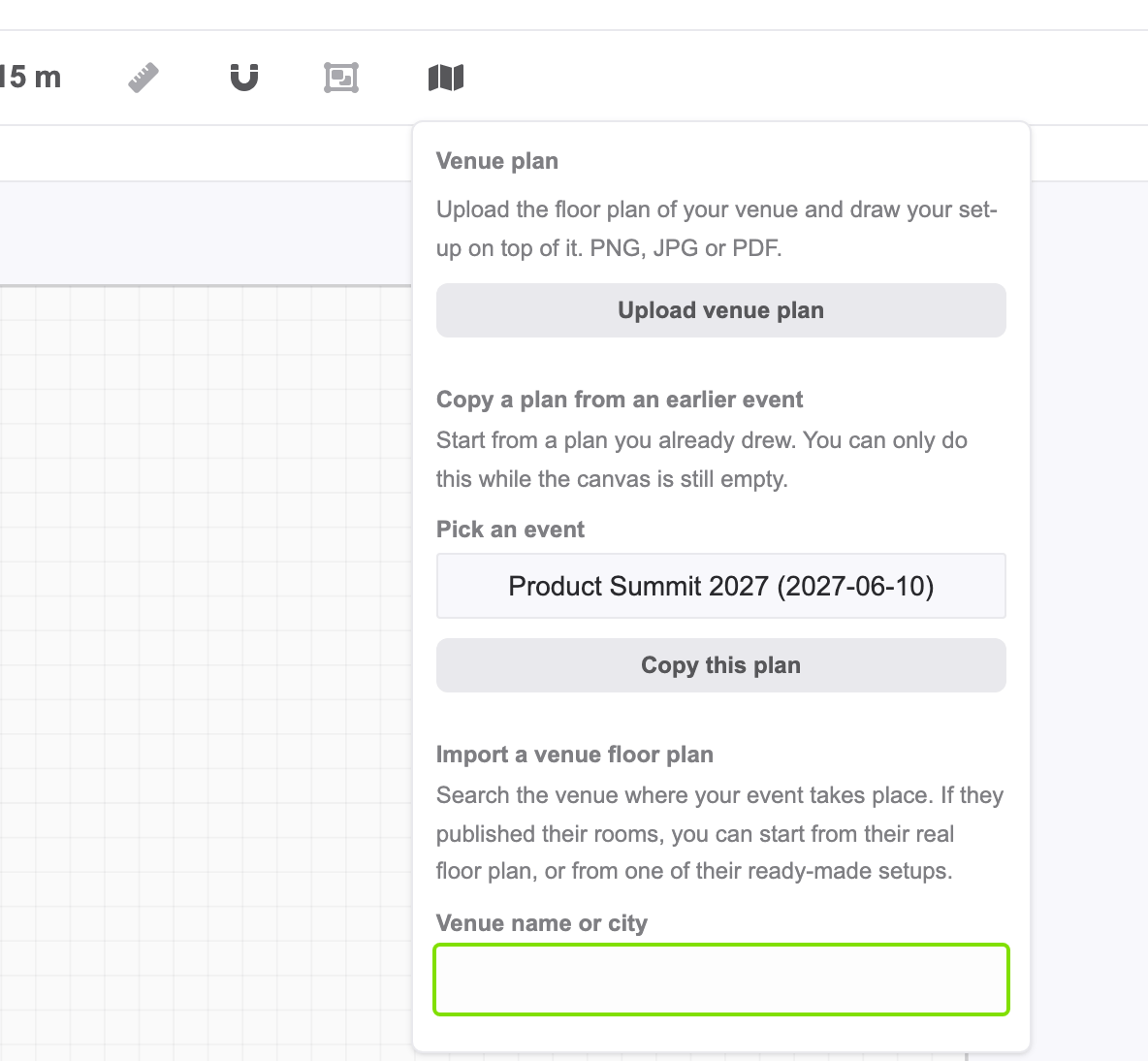

Copying an earlier plan or importing the floor plan of a venue

Did the venue not publish its floor plans yet? Click Request the venue to submit their floor plan. We send the venue a message from you through your eventplanner.net inbox, and you follow it up there.


4. Seat numbers and blocked seats

Every chair on the plan has a number, and that number is what your guests see on their ticket and what you read in the seating list. By default, the chairs of a table or a row are numbered with the letter of the element: A1, A2, A3 on table A, B1, B2 on table B. Change it per table or row in the panel:

  • Row / number prefix: the text in front of the number, glued to it. "A" gives A1, A2, "7-" gives 7-1, 7-2, and "Balcony " gives Balcony 1, Balcony 2.
  • Start numbering at: the first number, for a row that continues the numbering of the row before it.
  • Reverse numbering direction: count from the other end.
  • Seat numbering: Consecutive (1, 2, 3), Odd only (1, 3, 5) or Even only (2, 4, 6). Theatres number the left of the aisle odd and the right even. Only seat rows have this option.

Click one chair on the plan to change that chair alone. The panel shows the Chair with its number. Type your own text in Seat number / label, or leave it empty for the automatic number. Tick Blocked (not assignable) to take the chair out of use: a blocked chair is never sold and nobody can be seated on it. Use it for the chair behind the pillar, the seat of the sound engineer or the seats you keep free for yourself. Blocked chairs are counted separately in the counter under the title of the page.

Every number on the plan has to be unique. If two chairs end up with the same number, a warning above the plan lists them: Duplicate seat numbers. Fix it before you publish or seat anyone.

Tip: number the chairs the way the venue numbers them, with the venue's row letters and seat numbers. The seat on the ticket then matches the plate on the chair, and your guests find their seat without help.


5. Seat your guests yourself (RSVP events)

Is your event an RSVP event, with a personal invitation per guest? Then you decide who sits where. As soon as your plan has seats, Plan / Seating opens on Seating - assign guests. The green button Assign guests in the designer and the button Edit floorplan in the assign view take you from one to the other.

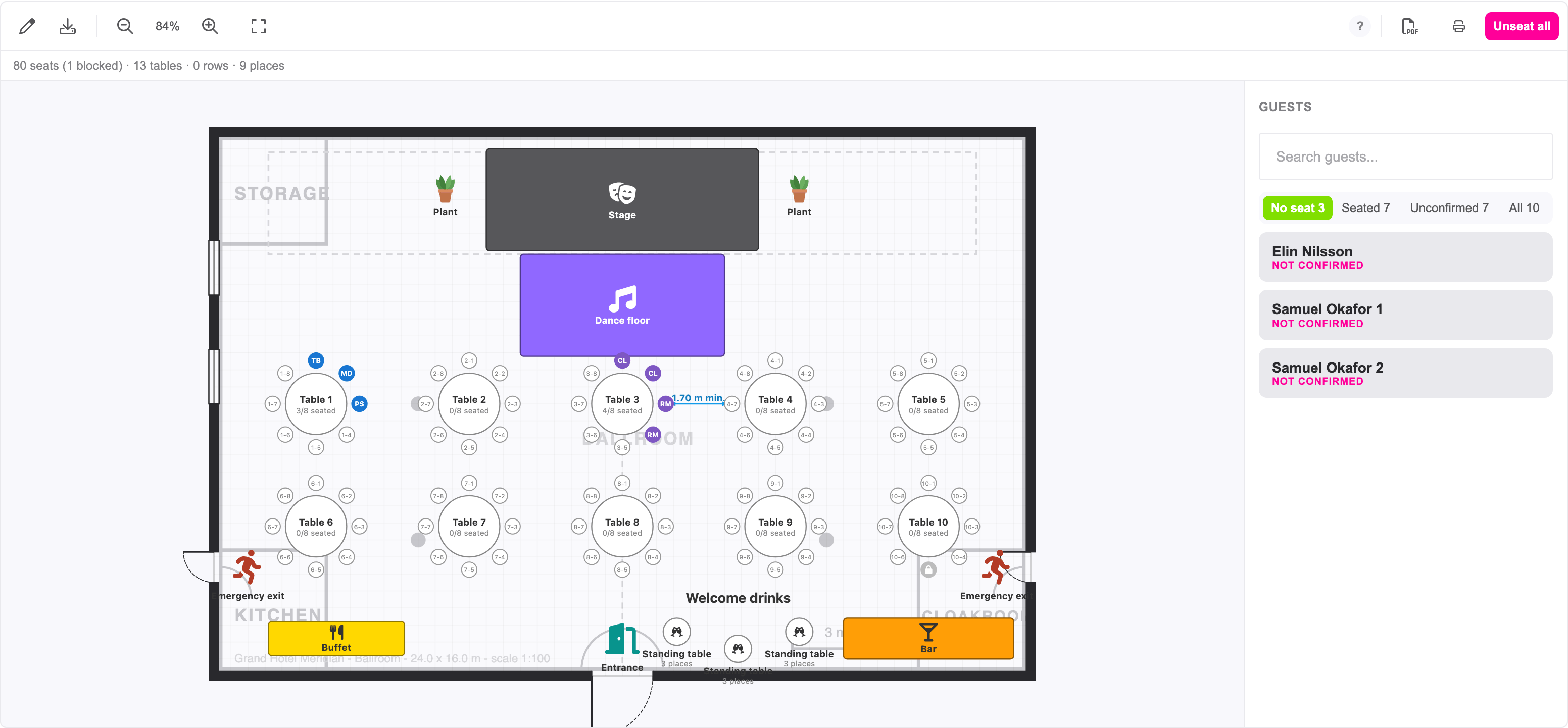

Assigning the guests of a gala dinner to their seats

The list on the right holds your guests, with a search field Search guests... and four filters: No seat, Seated, Unconfirmed and All. Each filter shows its count, so you always know how many guests still need a seat. Drag a guest onto a chair, or click the guest and then the chair. Drag an occupied chair to move that guest to another seat, or click it to unseat the guest. The counter at the top reads how many of your guests are seated. Unseat all empties every chair.

Your guest list and your plan stay in step:

  • Guests who have not answered yet are in the list as well, marked Unconfirmed. An invitation for two shows as two guests: "Marie Dubois 1" and "Marie Dubois 2". Seat them in advance. When they confirm, the seats go to the real guests, one by one. When they decline, their seats are free again.
  • A guest who confirmed is in the list by name. Guests you invited for two and who confirm for two are two guests in the list.
  • Too few seats? When your guests outnumber the seats they can be assigned to, a warning above the plan tells you how many guests you have for how many seats.
  • Changing the plan while guests are seated is allowed. Delete a table, and its guests go back to No seat. A notice tells you how many.

Seating your guests is for you and your team: nobody gets a message when you seat or move a guest. A guest whose placeholder you seated before they confirmed does get the seat on their ticket, because the ticket is made at the moment they confirm, and the seat is already theirs by then. At the door, the ticket scanner shows the seat with every scanned ticket, and section 7 explains how to print the seating list for your hosts.

Good to know: an RSVP event has no zones and no seat picking. Your guests never see the plan; only you do.


6. Let your guests pick a seat (free and paid events)

For an event that sells tickets, the plan becomes a seat picker: your guests choose their seats on the plan while they order, the way they do for a concert or a show. Three things make that work: a plan with seats, ticket types that are seated, and, when not every ticket may sit everywhere, zones.

Mark a ticket type as seated

Draw the plan first, so that it has seats. Then open Tickets for your event. The settings board has a step Seating: it is checked once your plan has seats that can be sold, and its button brings you to the designer, Set up while you have no plan yet and Open once you have one. In the ticket settings, every ticket type has a section Seating with one option: Buyers of this ticket pick a seat on the seating plan. Tick it for the ticket types that come with a seat. A ticket type without the tick is general admission: its buyers get no seat and skip the seat picker. You can mix both, a seated grandstand and a standing floor, in one event.

The option is only there when your plan has seats that can be sold, and it is not there when your event uses time slots: seat picking does not work together with time slots. You never sell more tickets of a seated type than there are free seats for it.

Zones: which ticket sits where

Without zones every seated ticket type may pick any seat on the plan. Want the VIP tickets in front of the stage and the standard tickets behind them? Then you need zones. A zone is a part of your venue with its own colour on the plan and its own ticket types, and the ticket scanner uses the same zones at the door. Read how to use Tickets for everything zones do there.

Click Zones (the layers icon) at the top left of the designer. The panel lists the zones of your event, each with its colour and the number of seats painted into it. Click Add a zone, type the Zone name, choose a Colour and click Save. Then paint tables and rows into their zone: select them and choose the zone in the Zone field of the panel. The seats take the colour of their zone.

The zones panel, with the tables of the VIP zone painted orange

Finally, link every seated ticket type to its zones in the ticket settings, under Applies to. A ticket type then only sells the seats of the zones it applies to.

Locks: on an event with zones, a seat that is in no zone is not sold. The panel lists those seats as No zone - not for sale, the designer warns you above the plan, and the publish step of Tickets repeats the count. Paint every table and row before you publish. Zone names lock once your event is published; the colours never do. Creating, renaming and deleting a zone needs the manage right on Tickets next to the right on Plan / Seating, because a zone is ticket configuration. Painting tables into an existing zone only needs Plan / Seating.

What your guests see

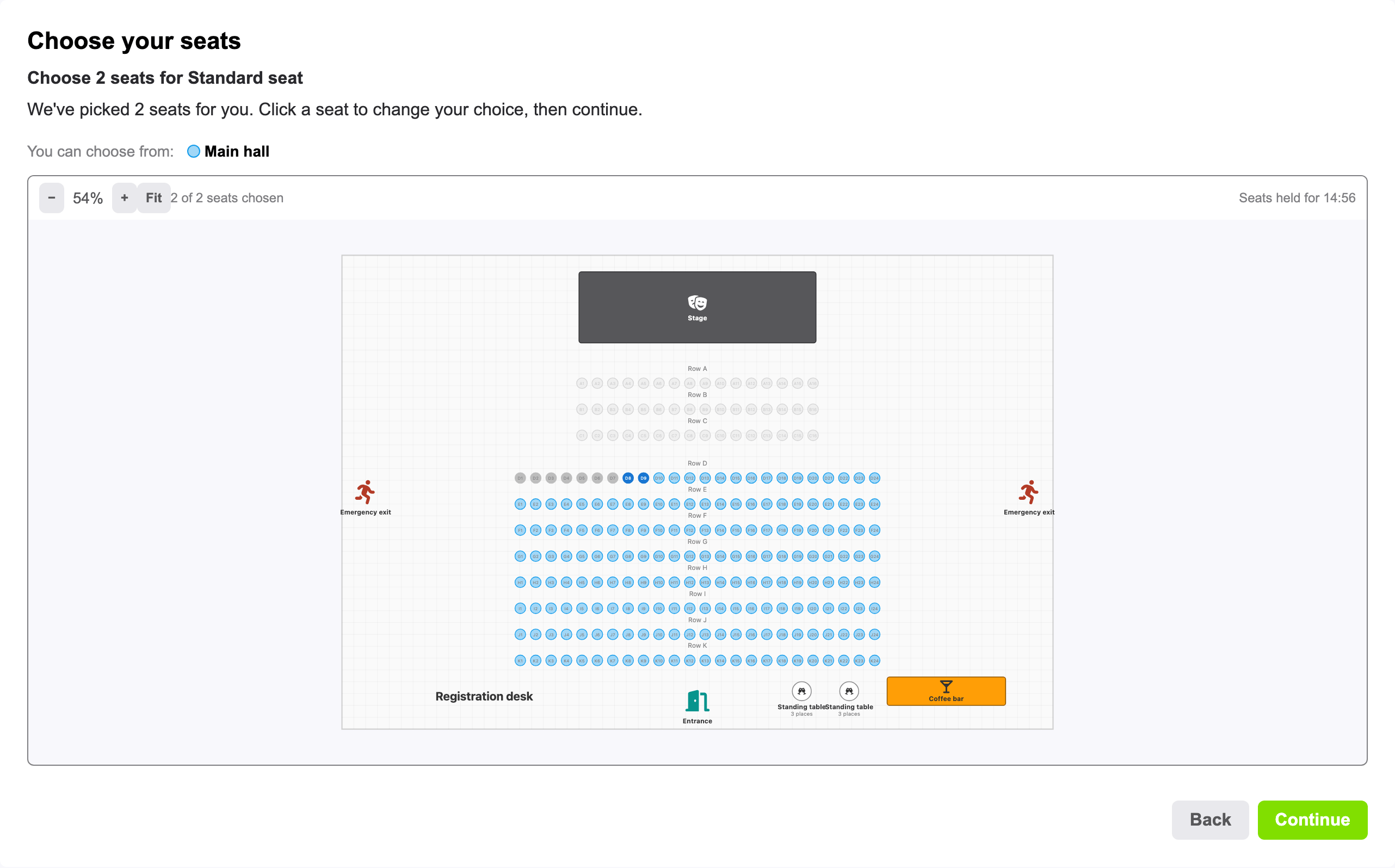

A guest who orders a seated ticket gets a step Choose your seats between the tickets and the checkout. We pick seats for them straight away: next to each other at one table or in one row, and never leaving a single empty seat between two taken ones. The guest can accept the proposal with Continue, or click other seats on the plan to change the choice. Seats of zones their ticket does not apply to are greyed out, and the plan says which zones they can choose from. Their seats are held for 15 minutes while they finish the order, so nobody else can take them. If they pick seats that would leave one seat on its own, the picker asks them not to. With more than one seated ticket type in the order, they pick the seats of each type in turn: Step 1 of 2, Step 2 of 2.

What a guest sees: picking seats on the plan

The seat ends up everywhere the ticket is: in the confirmation e-mail, on the ticket PDF, in the wallet pass and in the ticket scanner at the door. Read how to use Tickets for the order flow around it.

Who sits where

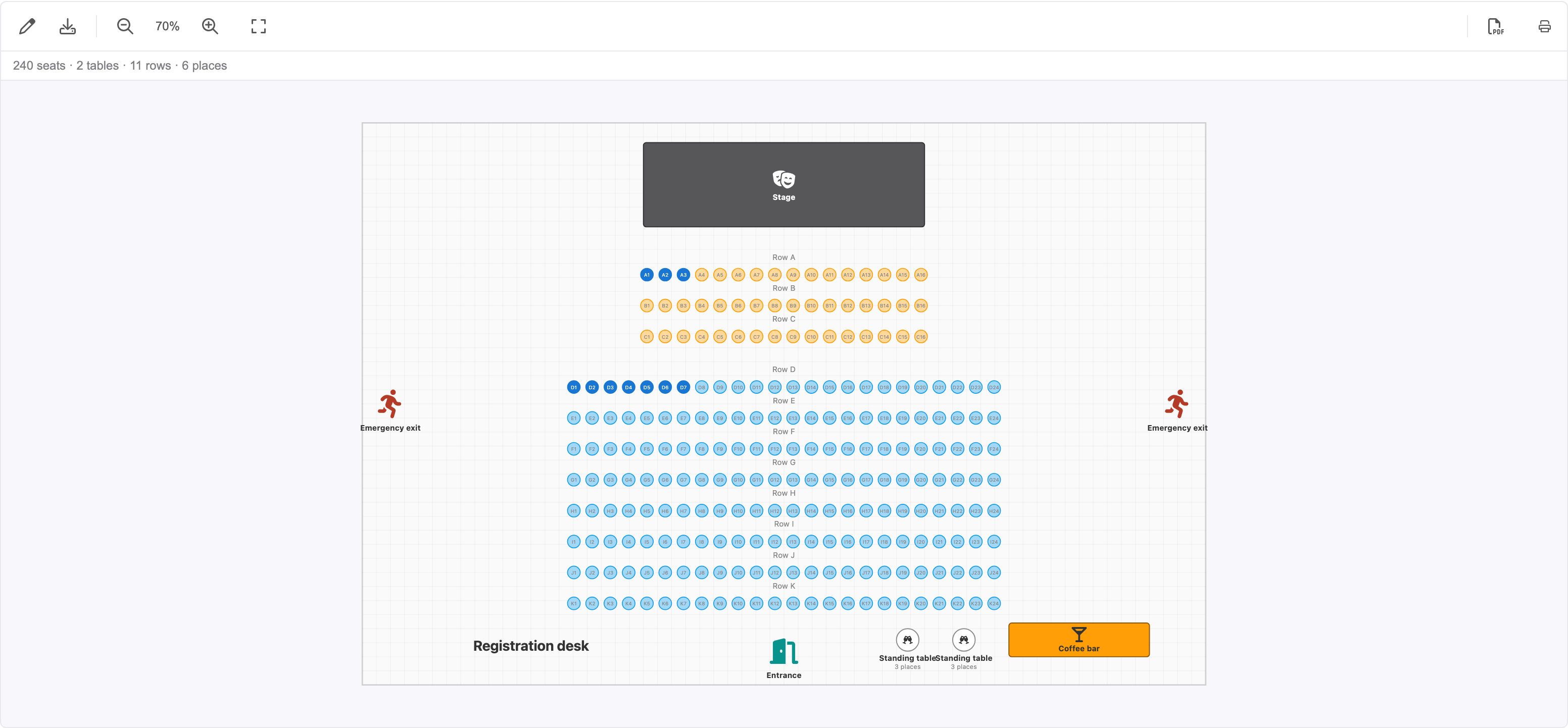

Once your event is published and seats are being sold, Plan / Seating opens on Seating - who sits where: your plan, read-only, with the sold seats filled in. The counter reads how many seats are sold, free and blocked, per zone as well. Move your mouse over a seat to see who booked it. Edit floorplan brings you back to the designer.

Who sits where, once tickets are selling

Locks: from the moment your event is published, a seat that is booked cannot be removed, blocked or moved to another zone, and that includes deleting its table, lowering the number of seats of its row or clearing the plan. A sold seat is a ticket in someone's hands. Everything else stays possible: add tables, rename, move, recolour, add walls and decoration, block seats that are not sold. You cannot move a buyer to another seat either: cancel the ticket in Tickets and let the guest order again.


7. Print, export and share the plan

Every view of the plan has the same two buttons, for everyone who can open the plan. In the designer they sit at the top left:

  • Download the plan as a PDF opens a small window: choose the Paper size, A4 or A3, tick or untick Include the element list and click Download as PDF. The PDF is sharp enough to print and places the plan as large as the page allows: a plan that is deeper than wide prints in portrait on its own. Untick the element list to give the plan the whole page. The overview of section 2 is the element list.

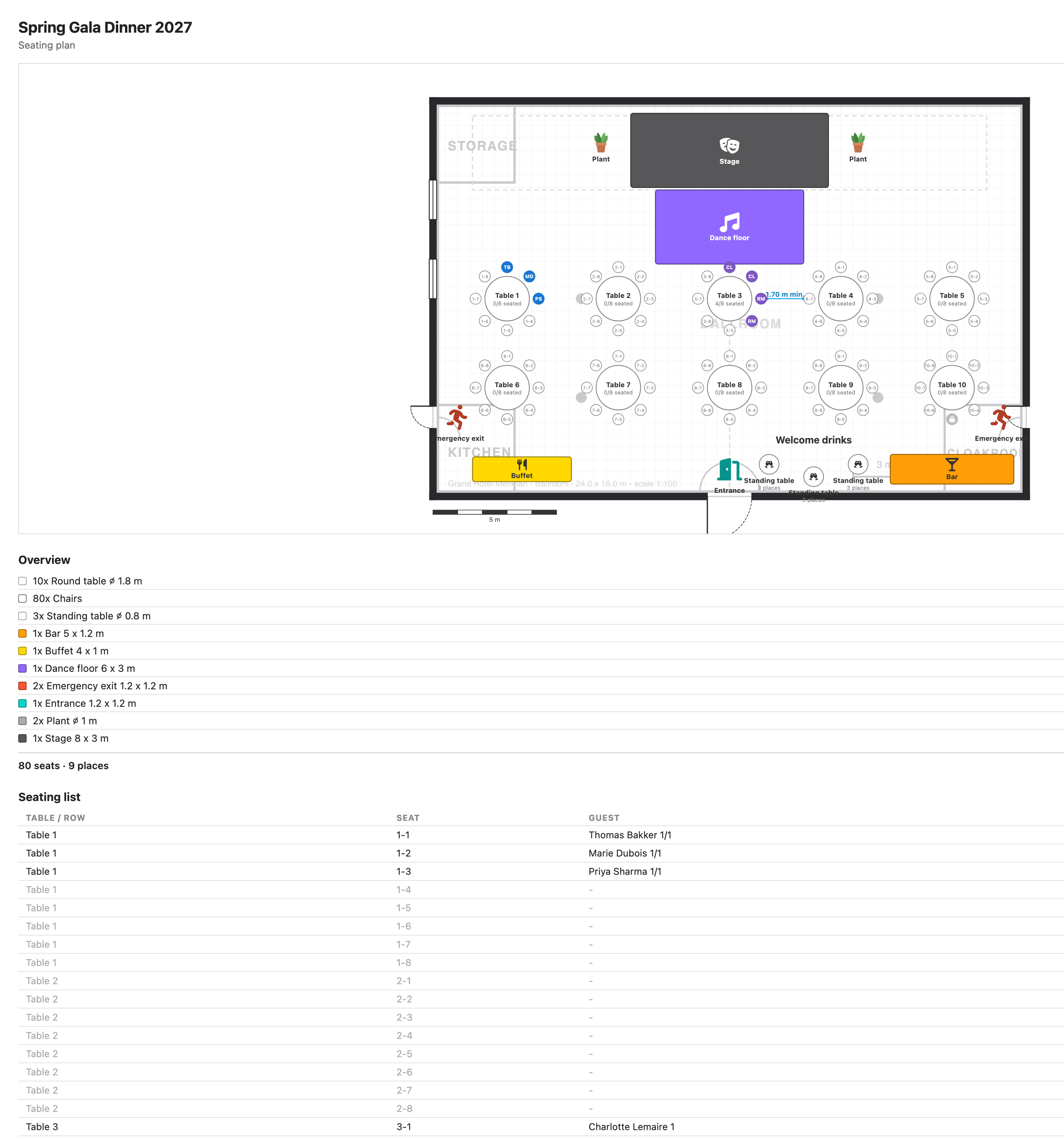

  • Print opens a page with the plan, the zones, the overview and the Seating list: every table and row with its seats, the name of the guest on each seat and whether they confirmed. Print it for the hosts at the door, or save it as a PDF from your browser.

The print view, with the plan and the seating list

In the assign view and the who-sits-where view there is a third button, Download seating list: the same list as an Excel file, with the columns Table / row, Seat, Guest and Status, for the caterer who prints the name cards.

Tip: your suppliers do not need an account to receive the plan. Attach the PDF to a briefing in Briefings, or give your venue contact read access to the plan itself (section 8). Read how to use Briefings.

Tip: the plan also opens in the eventplanner.net app on your phone or tablet, handy on the day to check the room. Drawing is more comfortable with a mouse and a large screen.


8. Work on it together

Add the people you work with in Team & access in the menu of your event. Under Set contact access, choose what each of them may do in Plan / Seating:

No access They do not see the plan. This is the default for a new contact.
Read They see the plan, zoom, measure, read the overview, look at the plan in 3D, print it and download the PDF. They cannot change anything, and the editing tools are not shown to them.
Manage They draw the plan: add, move and delete elements, upload a venue drawing, import a plan and paint zones.

The plan and the people in it are two different things. Plan / Seating is about the room. Who sits in it, the guest names in the assign view, the who-sits-where view and the seating list, is guest data, and guest data belongs to Tickets. A contact who should also seat guests or see who booked which seat needs Read or Manage on Tickets as well, and that right needs 2-factor authentication on their account, as it does for everyone who can see your guest list. A contact with Plan / Seating alone gets the designer, the print view without names and the PDF, and never a guest name: your venue or production contact can draw the room without seeing a single guest, and without setting up 2FA. Read how to manage users in the event software for the details of contacts and rights.

Two things to keep in mind:

  • Every person who opens Plan / Seating needs a .PRO membership of their own, whatever their access. A colleague without a membership sees Unlock .PRO features, also with Manage access.
  • A contact who may manage the plan but not the guests cannot remove or block a seat that is already on the plan, because removing a seat could unseat a guest they are not allowed to know about. The designer tells them so: Removing or blocking a seat needs access to the guest list. You can still add, move and rename.

Good to know: the seating list holds the names of your guests. You process them as the organiser of the event under our processing agreement. Share the printed list and the Excel file only with the people who need them, and collect them again after the event.


9. Limits

Room size 1 to 500 metres wide and deep
Seats per plan 2,000
Elements per plan 5,000
Chairs on a round table or in a seat row 30
Chairs on a rectangular table 40 in total, 20 per side
Rows or columns in one Repeat 50
Venue drawing PNG, JPG or PDF, 15 MB
Map of the site 1,000 metres wide
Your own 3D models .glb, 64 MB each, 50 per account
Seats held while a guest orders 15 minutes

Frequently asked questions

Is Plan / Seating free? No. Plan / Seating is a .PRO tool. Without a membership you see Unlock .PRO features with a button to upgrade. All other tools of the event software keep working without a membership, with the limits of the free version.

My colleague has access to Plan / Seating but sees Unlock .PRO features. Why? The membership is checked for the person who opens the tool. Your colleague needs a .PRO membership of their own, also when you are a member and gave them Manage access.

Can I use the floor plan without selling or assigning seats? Yes. Draw the room with tables, standing tables, the bar and the stage, print it or download the PDF, and never open the seating side of it. The overview counts what you have to order.

How do I get the same distance between all my rows or tables? Draw one row or table and use Repeat to place the others at the distance you type. For rows or tables that are already on the plan, select them and use Arrange: Space between them (m) sets an exact distance, and Centre between the walls gives the whole block the same distance to the walls on both sides. Rows and tables at the same distance in section 2 explains both.

Can I curve the rows, like in a theatre? Yes. Select a seat row and drag Curve in the panel, from Straight to Half circle. Select several rows to bend them together round one centre with Curve the rows. Curved rows, like a theatre in section 2 explains it.

Where is the option to let buyers pick a seat? The option Buyers of this ticket pick a seat on the seating plan only appears in the ticket settings when your plan has seats that can be sold, and never when your event uses time slots. Draw the tables or rows first, and check that none of your sections has a time slot.

Why can't I copy an earlier plan or import a venue plan? Both only work while your plan is still empty. Remove the elements you placed, or use Clear plan, and the options come back. The earlier events listed are the ones where you may manage the plan and that have a plan with something on it.

Can I still change the plan after my event is published? Yes, except for the seats that are booked: they cannot be removed, blocked or moved to another zone. Adding, moving, renaming and recolouring is always possible.

Can I move a guest to another seat? For an RSVP event, yes: drag the occupied chair to another chair. For a guest who bought a seated ticket, no: the seat is on their ticket. Cancel the ticket in Tickets and let the guest order again.

Why are some seats not sold? On an event with zones, a seat that is in no zone is not for sale. Open Zones in the designer: the panel lists those seats as No zone - not for sale. Paint the table or row into a zone.

How do I switch from metres to feet? Open the form of your event and change Measurement unit. The plan stays the same, the labels change.

What is the difference between seats and places? A seat is a chair someone can be assigned to or can buy. A place is standing room: the people at a standing table or at the bar. Places count in the overview but are never sold or assigned.

Does my guest see which seat they have? A guest who picked a seat sees it in the confirmation e-mail, on the ticket PDF, in the wallet pass and at the door when the ticket is scanned. A guest you seated yourself on an RSVP event is not told: print the seating list for your hosts, or tell them yourself.

My PDF is small. How do I make it bigger? Choose A3 and untick Include the element list in the export window. The plan then takes the whole page, in the orientation that fits it best.

Why did my room change size when I added a map? The room takes the size of the map, so the area you picked is the area you plan on. Need another size? Change Room width (m) and Room depth (m) in Plan dimensions: the map stays where it is.

Why don't I see View in 3D? The 3D view is not in the eventplanner.net app, so open the plan in your browser. A browser that cannot draw 3D (it has no WebGL) says so when you click the button: update it or try another one.

Do my guests see the 3D view? No. The 3D view is for you and the people who can open your plan. Use Save as image to show the room to anyone else.

Can I have more than one plan for my event? No. Every event has one plan. For a day with a dinner and a conference in two rooms, create two events or draw both rooms in one plan.

Complete and continue

Read also
